Institutional Heat Recovery System Upgrade

Typically steam project contracts are awarded to replace or retrofit existing components, or add capacity to a steam plant. Instead, our institutional client tendered this project by asking how we would improve the plant's energy efficiency, given a $1 million budget.

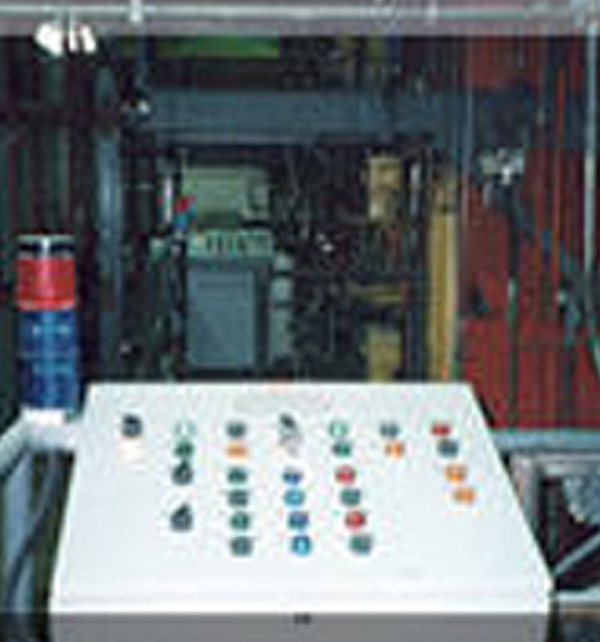

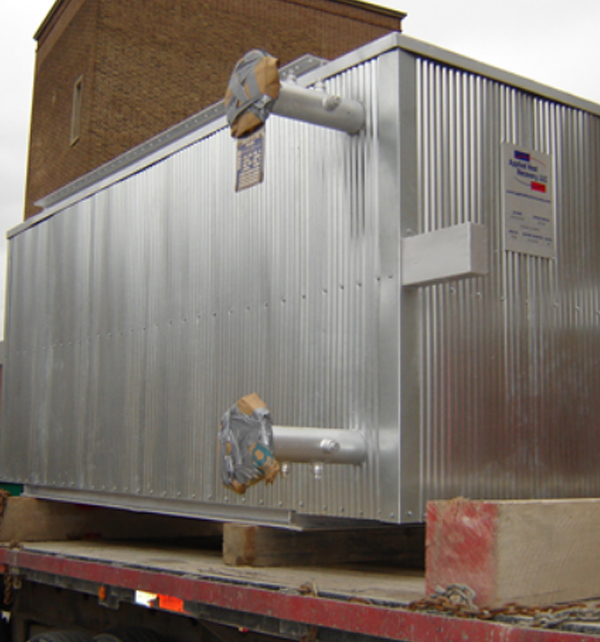

In a joint venture with Maunder Britnell, we put together a proposal to upgrade the plant's heat recovery system in several ways. We installed a conventional economizer on each of the plant's three 100,000 lb/hr boilers and one 200,000 lb/hr boiler. We also added one condensing economizer that was common to all four boilers. Combined, these measures reduced flue gas temperatures from 600-700 °F down to 110 °F. In addition, we implemented a blowdown heat recovery strategy by adding a flash tank and heat exchanger to recover waste heat from the blowdown water. Finally, we designed a computer program that automatically calculates load and sets each boiler individually at its optimum efficiency.

Together, these upgrades saved our client over $1 million dollars in the first year - a rewarding payback for their investment - and continue to bring in similar savings on an annual basis.
